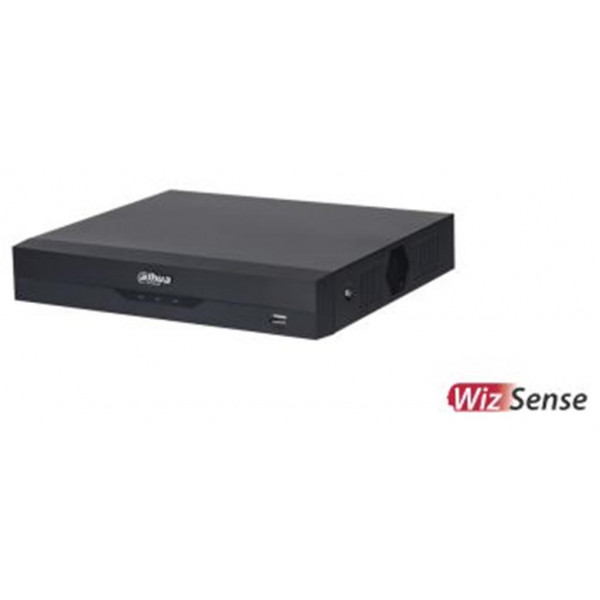

GRABADOR PENTAHIBRIDO, 4 CANALES, WIZSENSE, 1HDD, COMPACT 1U, 4K, HDMI/VGA, PROTECCION PERIMETRAL

Main Processor: Industrial-grade processor
Operating System: Embedded Linux
Operating Interface: Web Local GUI
Perimeter Performance AI by Recorder (Number of Channels):
Advanced Model : 1 channel, 10 IVS for each channel
General Model : 4 channels, 10 IVS for each channel

Face Attributes: Gender age group glasses expressions face mask beard
Face Detection Performance of AI by Recorder (Number of Channels): 1 channel (up to 8 face images/s)
Face Database Capacity: Up to 10 face databases and 20,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels)
: 1 channel
SMD Plus by Recorder: 4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Analog Camera Input: 4 channels, BNC: adaptive access by default HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input:
1. CVI: 4K, 6 MP, 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps.
IP Camera Input: Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
Encoding Capacity:
Main stream: All channel 4K (1 fps–7 fps) 6MP (1 fps– 10 fps) 5MP (1 fps–12 fps) 4K-N, 4MP/3MP (1 fps–15 fps) 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps)
Sub steram: 960H (1 fps–15 fps) D1/CIF (1 fps–25/30 fps)
Dual-stream: Yes
Video Bit Rate: 32 kbps–6144 kbps
Audio Sampling: 8 kHz, 16 bit
Audio Bit Rate: 64 kbps
Video Output:
1 HDMI, 1 VGA (VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720)
Multi-screen Display:
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9
Third-party Camera Access: ONVIF Panasonic Sony Axis Arecont Pelco Canon Samsung
Video Compression: AI Coding H.265+ H.265 H.264+ H.264
Audio Compression: G.711a G.711u PCM
Network Protocol: HTTP HTTPS TCP/IP IPv4 RTSP UDP SMTP NTP DHCP DNS DDNS P2P
Record Mode: General, motion detection intelligent alarm POS
General Alarm: Motion detection, video loss, tampering
Audio Input:
1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output: 1-channel RCA
Two-way Talk: Yes (share the same audio input with the first channel)
HDD Interface: 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485: 1 port, for PTZ control
USB: 2 USB ports (USB 2.0)
HDMI: 1
VGA: 1
Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply: 12 VDC, 2 A
