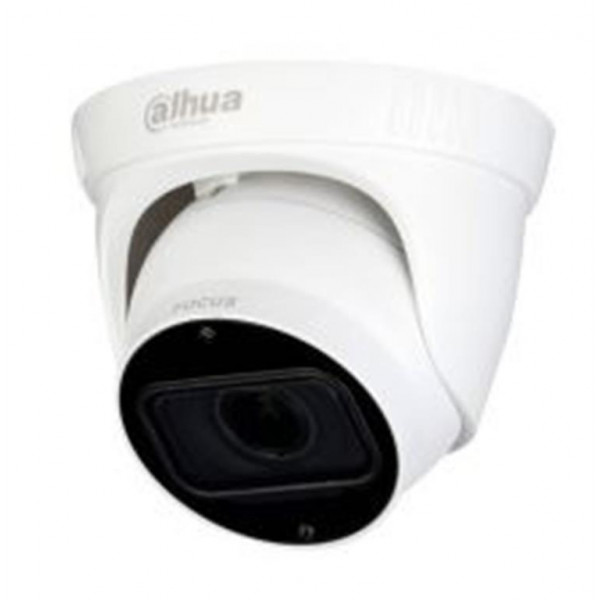

CAMARA DOMO, HDCVI, COOPER, 2MP(1080P), IR 40MTS, IP67, NTSC

CAMERA
*******
Pixel: 2 MP
Image Sensor: 2MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Scanning System: Progressive
Electronic Shutter Speed:
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination:
0.04 lux@F1.7 (Color, 30 IRE)
0.004 lux@F1.7 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio: 65 dB
Illumination Distance: 40 m (131.23 ft)
Illuminator On/Off: Control Auto/Manual
Illuminator Number: 2 (IR light)
Pan/Tilt/Rotation Range:
Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

LENS
*******
Lens: Lens Type Manual Vari-focal
Lens Mount: f14
Focal Length: 2.7 - 12 mm
Max. Aperture: F1.7
Field of View: H: 102°–32° V: 54°–18° D: 121°–37°
Iris Control: Fixed
Close Focus Distance: 0.8 m (2.62 ft)
Video Frame Rate
CVI:
PAL: 1080p@25 fps 720p@25 fps
NTSC: 1080p@30 fps 720p@30 fps
TVI:
PAL: 1080p@25 fps 720p@25 fps
NTSC: 1080p@30 fps 720p@30 fps
AHD:
PAL: 1080p@25 fps 720p@25 fps
NTSC: 1080p@30 fps 720p@30 fps
CVBS:
PAL: 960H
NTSC: 960H

VIDEO
*******
Resolution: 1080p (1920 × 1080) 720p (1280 × 720) 960H (960 × 576/960 × 480)
Day/Night: Auto (ICR)/Color/B/W
BLC: BLC HLC DWDR
WDR: DWDR
White Balance: Auto Area white balance
Gain Control: Auto/Manual
Noise Reduction: 2D NR
Smart Illumination: Yes
Mirror: Yes
Privacy Masking: Off/On (8 areas, rectangle)
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply: 12 VDC ± 30%
Casing: Metal dome top + plastic
